LED 亮化照明系列
LED Lighting series

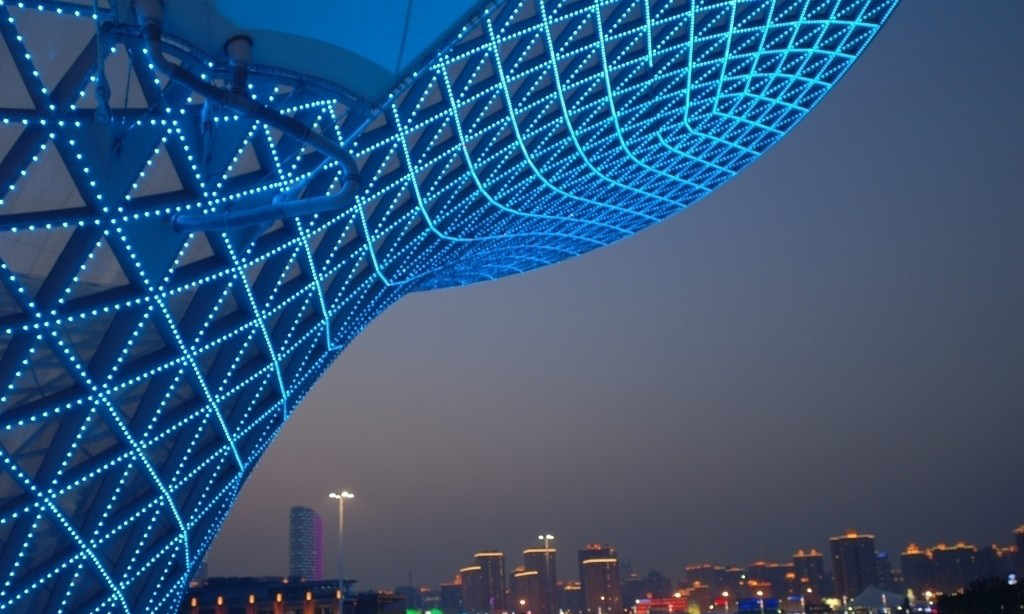

主要应用于提高城市的整体形象,而对标志性建筑、商场、旅游景区、街巷
Mainly applied to improve the overall image of the city, and landmark
buildings, shopping malls, tourist scenic spot, the streets

像素灯 WS-F701
产品说明
·简约时尚的外观设计
·人性化结构设计,拆装方便,安全可靠
·进口聚合物基料,抗冲击,使用寿命长
·二次封装工艺
Product Description
·Simple adn fashion design
·Humanized design,convenient disassembly and assembly,safe and reliable
·Import of polymer binders, impact resistant, long service life
· Secondary packaging process
技术参数 Technical Parameter
LED 种类 | Type of the LED | 单芯片封装 Single Chip |
LED 数量 | LED Chip Quantity | 3-12pcs |
输入电压 | Input Voltge | 12V |
发光角度 | Luminous Angle | 120° -180° |
使用寿命 | Lifetime | 〉50000h |
工作环境温度 | Operating temperature | -40℃ ~+50℃ |
工作环境湿度 | Operating Humidity | 10%~90% |
触电保护等级 | Electric Shock Protection Grade | I 类 |
防护等级 | Protction Grade | IP68 |
亮灯方式 | Lighting color | 单色/ 数码单色/ 数码RGB |
阻燃等级 | Fireproof Grade | V-0 |
控制方式 | Control Method | 常亮/ 串行控制 |
电源最大连接数 | Max Power Supply Connect | 40 个 |
